The short answer
California caps ADU side and rear setbacks at four feet statewide, and a conversion inside an existing structure needs no new setback approval at all. Under five feet from a property line, fire-rated construction kicks in, which is a cost question, not a permission question.
Setbacks decide whether an ADU fits on your lot before any other rule gets a say. California settled the question statewide: a city may not require more than four feet from the side and rear property lines for an ADU. Los Angeles applies exactly that.
What the four-foot rule actually says
A new detached or attached ADU must be allowed with side and rear setbacks of no more than four feet. Cities can allow less in places, but they cannot demand more. Front setbacks are different: the underlying zone's front setback still applies, and an ADU generally cannot sit in the front yard, with a narrow exception where no other placement on the lot is physically possible for an 800 sq ft unit.
The measurements that trip people up
- Setback is measured to the wall, not the roof. Eaves may typically project into the setback a limited distance, which we detail so plan check does not bounce it.
- Corner lots have two front-ish yards. The street-side yard is not a side yard, and the street-side setback of the zone can apply. This is the most common surprise on corner parcels.
- Easements beat setbacks. A utility easement along the rear line cannot be built over regardless of the four-foot rule. The title report and the survey both get read before the footprint is drawn.
- Alleys help. On alley-loaded lots, the rear setback is measured from the property line at the alley, and the alley itself gives working access and separation for free.

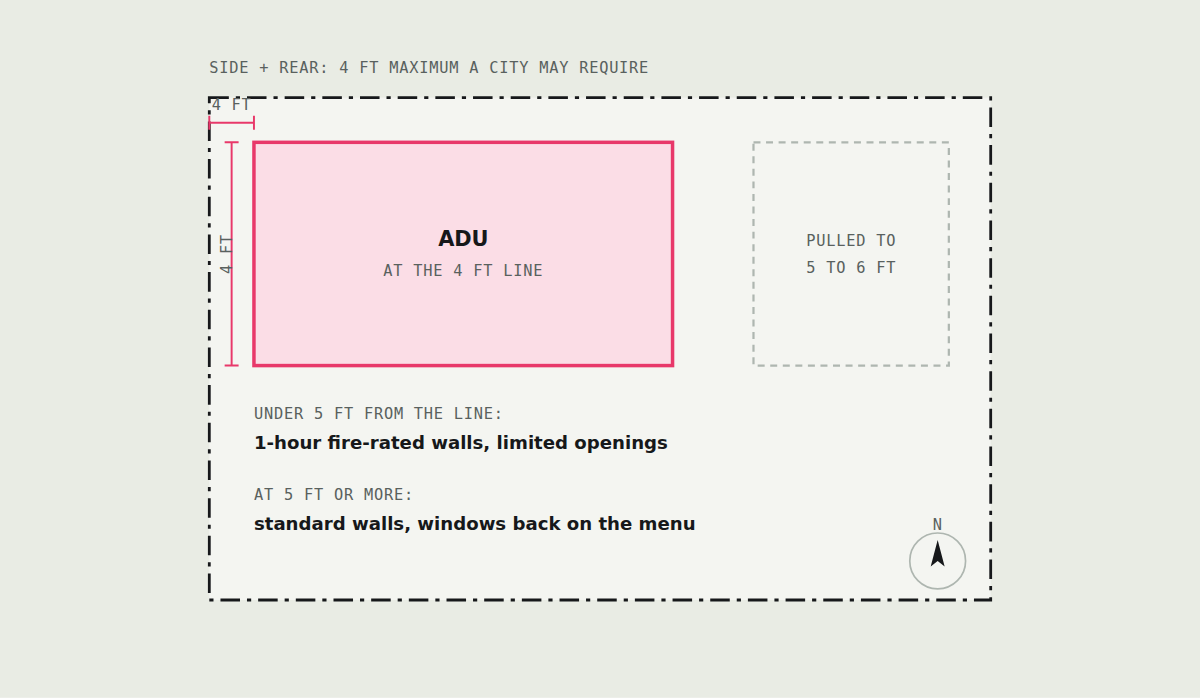

Under five feet: the fire-rating threshold
Setbacks are a zoning rule, but fire separation is a building-code rule, and it activates near the line. A wall within five feet of a property line needs one-hour fire-rated construction and faces limits on openings. In practice, a wall at exactly four feet costs more per linear foot than the same wall at five or six feet, and it may lose windows.
The design consequence: we place the unit at four feet only when the lot geometry demands it. When there is room, pulling to five or six feet buys back windows, cheaper walls and easier maintenance access at the cost of a strip of yard.
Conversions need no setback approval at all
An existing garage or accessory structure converted to an ADU keeps its existing footprint even where that footprint sits at zero setback, which old Los Angeles garages frequently do. State law protects the conversion of existing space explicitly. A garage built on the property line in 1948 converts to an ADU on that same line in 2026, with the fire-rated assembly handling the proximity. This is one of the quiet reasons a garage conversion is so much cheaper: the hardest zoning geometry is grandfathered.
Height interacts with setbacks
The base 16-foot height limit applies inside the four-foot setback condition. The 18-foot allowance near transit, and taller attached configurations, do not change the setback but do change massing at the setback line, and hillside or HPOZ overlays can impose stricter combinations. On tight lots, the winning design is usually a taller unit on a smaller, well-placed footprint rather than a sprawl to the lines on every side.
A worked example
Take a standard 50 by 130 ft Los Angeles R1 lot, 6,500 sq ft, house sitting in the front half. The rear yard is 50 ft wide by roughly 45 ft deep. Four-foot setbacks leave a buildable envelope of 42 by 41 ft. A 780 sq ft one-bedroom at 26 by 30 ft occupies less than half of that envelope, which is why the majority of standard LA lots pass the setback test without any exotic design at all. The lots that fail are under 40 feet wide, dominated by easements, or on slopes where the flat pad, not the setback, is the real constraint.
This article summarizes state law as applied in Los Angeles in 2026 and is not legal advice. Overlays change outcomes parcel by parcel, which is what the free lot check exists to resolve.
Find out what your lot allows
Free 48-hour lot check
Send the address. We do the parcel research.
Common questions
Can Los Angeles require more than four feet of setback for an ADU?
No. State law caps side and rear ADU setbacks at four feet statewide. The front setback of the underlying zone still applies, and easements and fire-code separation operate independently of the setback rule.
What if my existing garage is right on the property line?
It converts anyway. Conversions of existing structures need no new setback compliance; the footprint is protected. Fire-rated wall assemblies handle the proximity to the line.
Do eaves count toward the setback?
Setbacks are measured to the wall, and eaves may project a limited distance into the setback. The allowed projection is detailed on the plans so it clears plan check rather than becoming a correction.
Why would I build further from the line than four feet?
Walls within five feet of a property line need one-hour fire-rated construction and lose window options. When the lot has room, five to six feet buys back windows and cheaper wall assemblies.
